Biomass Briquetting Plant

Biomass Briquetting Plant
Biomass Briquetting Plant
Product Code : jumbo-90
Brand Name : RONAK AGROTECH
Product Description

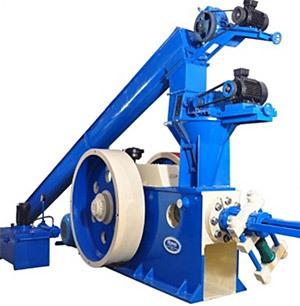

Jumbo90 Biomass Briquetting Plant :-

We at Ronak Agrotech Engineering Pvt Ltd are well known manufacturers and exporters of Briquetting Press Jumbo-90 which are being recognized worldwide. We have paved the way into the global market with our wide spectrum of Briquetting technology which has proved to be beneficial for our customers. Our primary focus is to always listen to our clients requirements and offering solutions using the ability of our valued high technology partners. Persistently engaging in budding technology and Briquetting automation enables us in reducing the overall production costs thereby offering consistently premium quality press and accessories at budget-friendly prices.

Jumbo-90 model

The Jumbo-90 model has been designed for a production capacity ranging from 1100-1250kg/h. This model often operates round the clock. It can be installed via automatic control for both manual as well as fully operated operations. Our Briquetting Jumbo-90 model has become a favored choice among customers owing to its maximum production capacity, easy operating system, low electric consumption, low maintenance cost and low production cost.

Raw materials used for Briquetting

The list of raw materials that can be briquetted includes all forms of agricultural and forestry waste. Some of these include Groundnut Shell, Mustard Stalk, Wood Chips, Bagasse (Sugarcane Waste), Sunflower Stalk, Bamboo Dust, Tea Waste, Press Mud, Wheat Straw, Castor Seed Shells, Tamarind Paste, Rice Husk, Jute Waste, Soya Bean Husk, Mustard Shell, Palm Husk, Coir Pith, Paddy Straw, Saw Dust, Paddy Husk and Coffee Husk. These can be mixed up to 25-30% with saw dust.

  •   Production capacity- Approximately 1250kg/hour
  •   Finished product shape- Cylindrical
  •   Form of raw material- Powder
  •   Finished product size- 90mm diameter
  •   Sheltered space for Briquetting press- 100x40 feet
  •   The power needed for the press, blower and hammer- 75 HP
  •   Open space- according to requirement
  •   Overall length of the machine- 6 meters
  •   Overall width of the machine- 2 meters
  •   Overall height of the machine- with conveyor 4 meters
  •   Oil used- Alpha ZN220
  •   Oil capacity- Approximately 60 liters
  •   Total weight of the machine- 7000 k

Production Capacity

1200-1800 kg/h

Finished product Size

90mm Diameter

Finished Product Shape

Cylindrical

Raw Material form

UP to 25mm Max

Power Require for Complete Briquette System

89 H.P

What can be briquetted

Groundnut Shell, Bagasse (Sugarcane West), Castor Seed Shells, Saw Dust Cotton Stalks / Chips, Bamboo Dust, Babool Wood Coffee Husk,  Tea Waste, Paddy Straw, Mustard Stalk, Mustard Shell, Wheat Straw, Sunflower Stalk, Jute Waste, Palm Husk,
Soya bean Husk, Sugarcane Waste, Barks Wood
Forestry Waste, Coir Pitch, Rice Husks, Wood Chips and any kind of agro west

Key Feature of Jumbo - 90

  • Maximum Production Capacity
  • Heavy structure with standard design
  • Acceptability up to 20 mm size of Raw Material (NO need of powder Form)
  • Easy Operating system High - density of finished product with 90 mm diameter
  • Lowest production Cost per MT due to state of art technology
  • Low Electric consumption due to direct feeding without hammer Mill
  • Low maintenance cost
  • No loss of production & Air pollution due to direct feeding system
